Bommer Spring Hinges

Call Toll Free
(888) 915-5223

Questions? visit our FAQ page

Home>

Baldwin Hardware

Bommer Spring Hinges

UL Listed for Fire Door Applications
Non-Handed
Steel Material - Now also available in Stainless Steel
Self Lubricating Bearings
Easily adjustable spring tension
2 Spring Hinges recommended per door
Hinges sold by the EACH

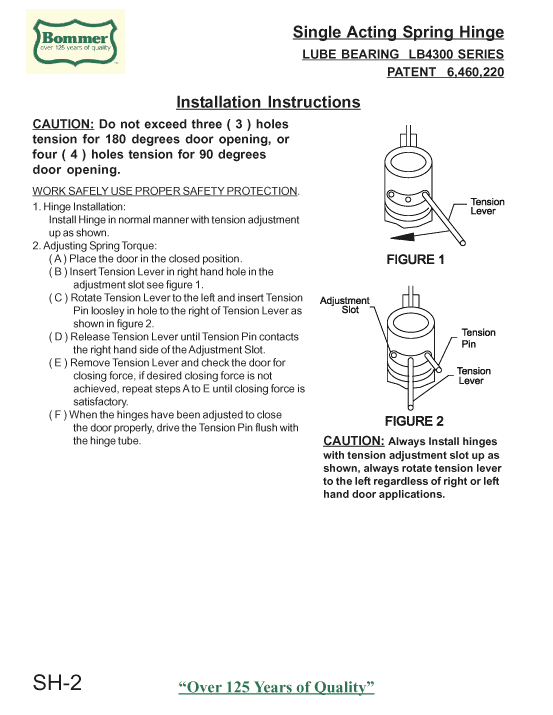

Installation instructions

Available in:
Square Corner
1/4" Radius Corner
5/8" Radius Corner

what is a radius corner?

Bommer Hinges Are

Made in the USA


3.5 " Spring Hinges
.96 thickness

Hinge Corner
Select Finish
Quantity

4 " Spring Hinges
.96 thickness

Hinge Corner

Select Finish
Quantity

4" Spring Hinges
Heavy Duty
1.30 thickness

Square Corner Only
Select Finish
Quantity

4.5 " Spring Hinges
Heavy Duty
1.30 thickness

Square Corner Only
Select Finish
Quantity

Stainless Steel
Spring Hinges

Heavy Duty
1.30 thickness

Hinge Corner
Select Size
Quantity
Bommer Floor Pivots
Double acting pivot doors
7801 Spring/Floor Pivot Horizontal Type
Light Duty ___ 35 lb Doors
Iron/Steel Mechanism

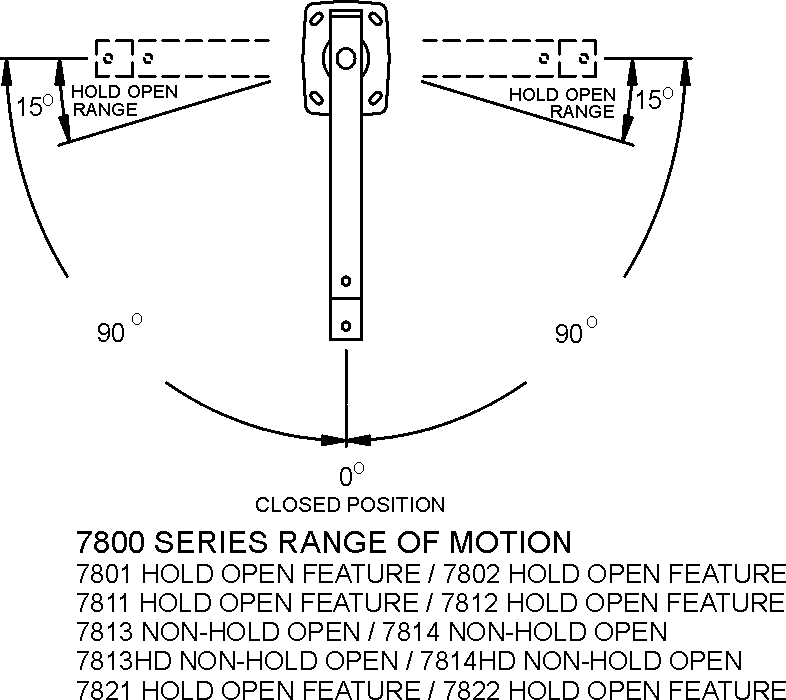

Hold open at 85'
installation instructions

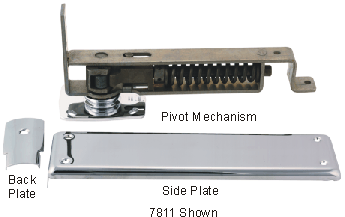

7811 Spring/Floor Pivot Horizontal Type
Medium Duty ___ 90lb Doors
Adjustable Spring Tension
Steel Mechanism
Hold open at 85'
installation instructions

7801 Light Duty Pivot

7811 Medium Duty Pivot

Select finish
Quantity

Select finish
Quantity



7813HD Spring/Floor Pivot Horizontal Type
Heavy Duty ___ 150lb Doors
Adjustable Spring Tension
Steel Mechanism
Does not have Hold open
installation instructions
7805 Jamb Bracket
Allows for Easier Jamb mounting
rather than standard floor mount
Works with all units

7813 Heavy Duty Floor Pivot

7805 Jamb Adapter

Select finish
Quantity
Select finish
Quantity

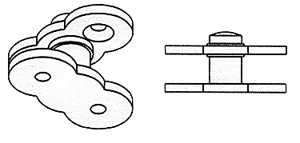

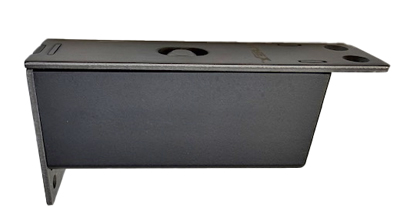

7890 Top Pivot Included with all Pivots

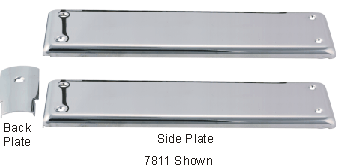

Replacement Cover Kits
for Floor Pivots

includes 2 cover plates and 1 back plate

bommer coverkit
7801 Cover Kit

Quantity
bommer cover kit
7811 Cover Kit

Quantity
If trying to change finish of you exiting hinge,
realize that the base plate of the hinge has
a finish that can not be changed

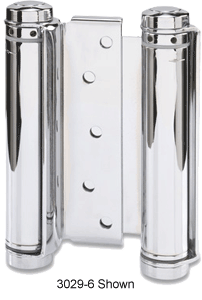

Bommer 3029 Double Acting Spring Hinges

2 Hinges
3 Hinges
Item #
Max Weight
Max. Width
Max Weight
Max. Width
3029-3
35 lbs
24"
39 lbs
32"
3029-4
60 lbs
28"
75 lbs
36"
3029-5
65 lbs
32"
93 lbs
36"
3029-6
75 lbs
32"
107 lbs
36"
3029-7
82 lbs
36"
120 lbs
42"
3029-8
103 lbs
42"
143lbs
48"


Double Acting Spring Hinges

Hinge Size
Door Thickness

3029-3"
template

3/4" - 1"
Select Finish
Quantity

3029-4"
template

7/8 "- 1 1/4 "
Select Finish
Quantity

3029-5"
template

1 1/8 " - 1 1/2 "
Select Finish
Quantity

3029-6"
template

1 1/4 " - 1 3/4 "
Select Finish
Quantity

3029-7"
template

1 3/8 " -2 "
Select Finish
Quantity

3029-8"
template

1 1/2 " - 2 "
Select Finish
Quantity
We have limited stock on the Bommer Double Acting Hinges - Lead time 3-4 weeks on some finishes
you will be notified after your order is placed of any delays


All Hinges are sold by the each

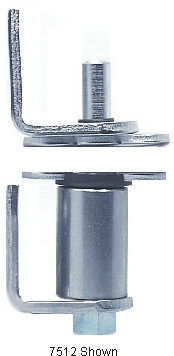

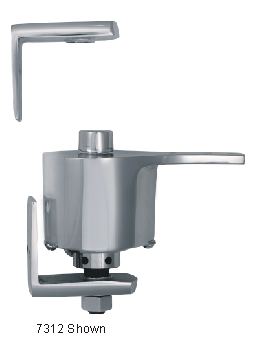

Cafe Door Hinges


7512 -H
7412 7312 7112
Max
Door Width
30" 24" 36" 36"
Max
Door Weight
50 lb. 35 lb. 75 lb. 75 lb
Door Thickness 7/8" -1 5/8" 1 7/8" max 1" - 2 1/2" 1" - 2 1/2"
Base
Material
Steel Brass Brass Steel
Hold Open Yes No No No
Pivot Type Gravity Gravity Spring
Adjustable
Spring
Adjustable
Dimensions
Page
7512 7412 7312 7112
We have limited stock on the Cafe Door Hinges - Lead time 3-4 weeks on some finishes
you will be notified after your order is placed of any delays

All Hinges are sold by the each
  cafe door hinge cafe door hinges

Select Finsh

Quantity
Select Finsh

Quantity
Select Finsh

Quantity
Select Finsh

Quantity

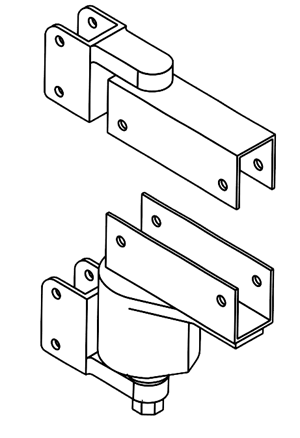

Door Clamp Styles
also Available for Partition Doors

Contact us for more information

cafe door pivot hinge

All Hinges are sold by the each
