Formally Period Brass Hardware

HICKORY DOOR HARDWARE IS DISCONTINUED

Period Brass Mortise Box replacements in Stock

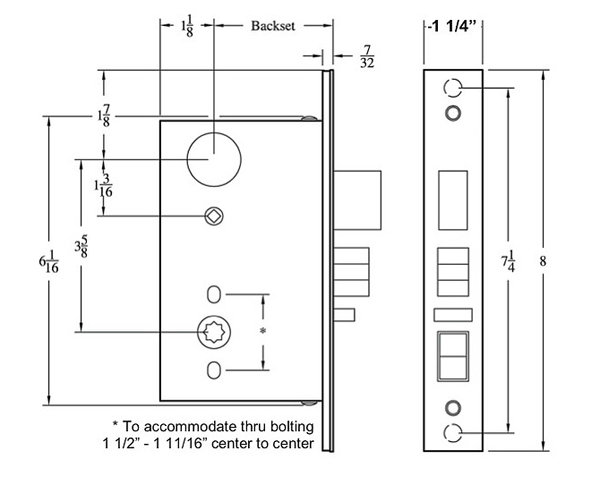

PERIOD BRASS MORTISE LOCK

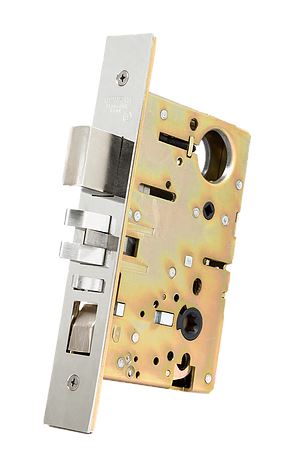

period brass mortise box
Replacement box Only
no trim

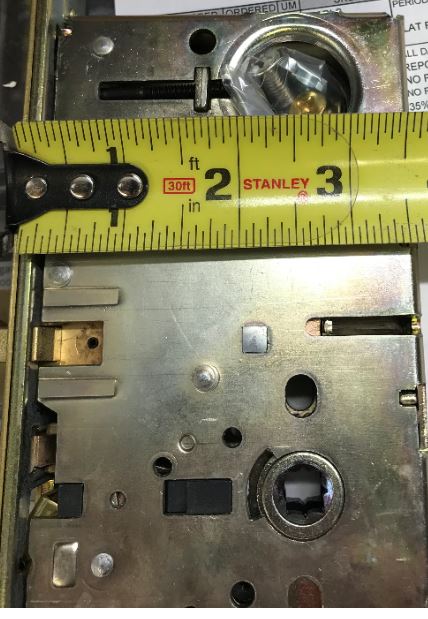

2.5" backset shown below

backset for period brass

Period Brass Replacement Mortise for Handleset trim
$ 429.99

Outside


Thumbpiece




period brass hardware

Outside must have a thumb-piece like above

Call (888) 915-5223
if you have a knob or lever like below - on the outside

Interior
  Lever Knob

Handing

  From the Outside (Key Side) of the door
are the HINGES on the Left or Right

Door Swing

In - Into the home
top image
Out - to the outside
bottom image

Backset

Distance from edge of door to center of lock
2. 1/2" - or 2 3/4"
Finish - color Brass - Oil Rubbed Bronze - Satin Nickel

Gather Information above - to order below






Replacent Spindles for Handlesets
$ 24.99

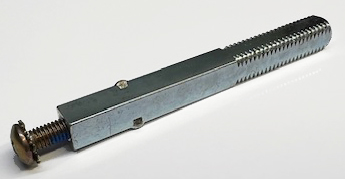

Threaded Spindle

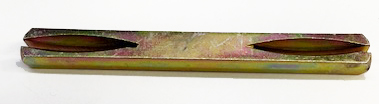

Smooth Spindle

Knob or Lever with have Internal threads

No internal threads

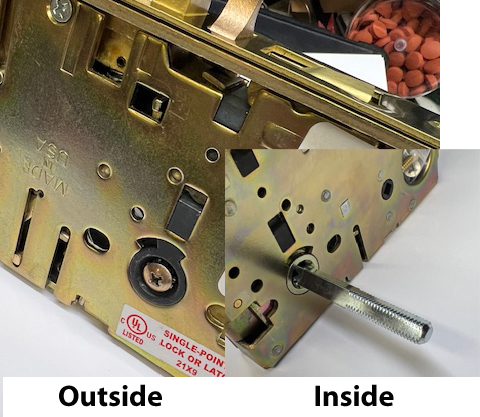

spindle will insert into box on the diamond ◇

spindle will insert into box on the square □

7.3mm - .28"

8mm - 5/16"

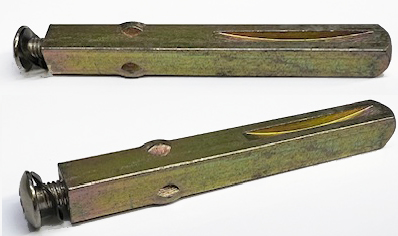

period brass spindle
2 7/8" overall

period brass spindle
2.75" overall


period brass spindle
CAWARNING



We have received many phone calls asking how to remove the Old Period Brass Deadbolts
We are posting the following to help our previous and future customers
Please check out our web sites

Lockshowroom.com Woodwardsace.com Hangingdoorhardware.com

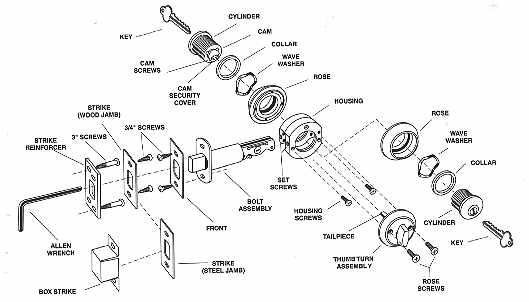

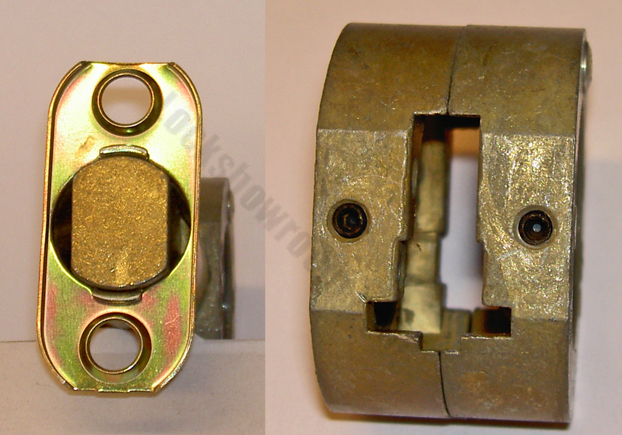

Period Brass Deadbolt Removal

The Period brass deadbolt is a mortise cylinder deadbolt. The cylinders are screwed into the "donut" housing and held in place a set screw for both the inside and outside.

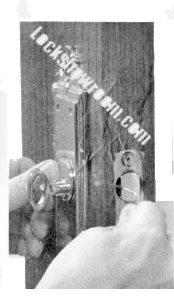

To access the set screws, remove the Deadbolt trim from the edge of the door,
locate a long 5/64 allen wrench and slide it into the exposed holes on the left and right of the bolt.
Loosen up the set screws
Unscrew the deadbolt cylinder by rotating the cylinder, a key blank or key that does not work the lock can be used
to help turn the cylinder

CAWARNING
you must put the allen wrench through the
entire deadbolt housing to get to
the set screws on the right
Set screws that hold the cylinder in
